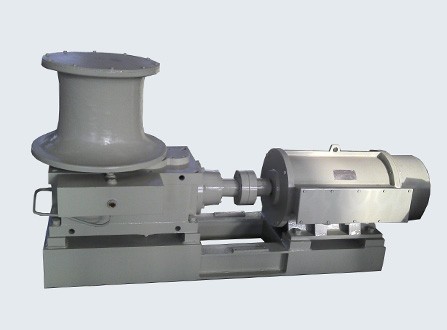

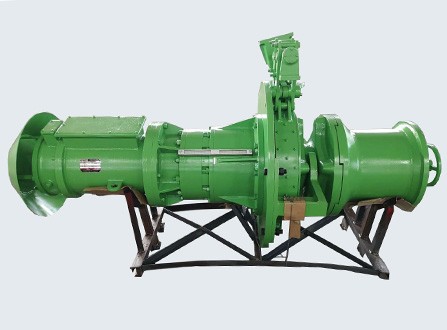

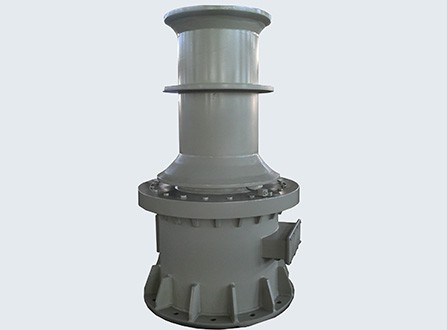

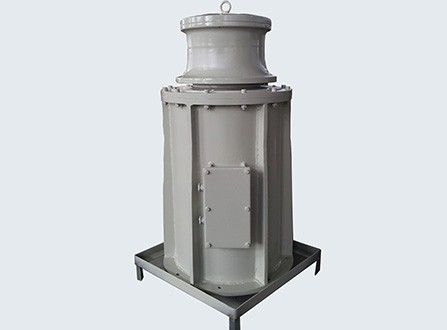

The electric mooring capstan is mainly for the line handling equipment , the power source can be hydraulic station , pneumatic or electric . It is widely used offshore on the vessels , it also can be used in shipyard or shoreside . The structure can be vertical or horizontal , it can be installed above deck or below deck , it can be designed as the requirements . For more details , pls contact us .
| Marine Mooring Capstan | |||||
| No. | Rated Load (Kn) | Holding Load（Kn) | Working Speed (m/min) | Motor Power (Kw) | |
| Electric | Hydraulic | ||||
| 1 | 10 | 30 | ≥12 | 3/1.2 | 5.5 |
| 2 | 15 | 45 | ≥12 | 4.3/1.7 | 7.5 |
| 3 | 20 | 60 | ≥12 | 6/2.5 | 11 |
| 4 | 25 | 75 | ≥10 | 6/2.5 | 11 |
| 5 | 30 | 90 | ≥10 | 8.5/3.5 | 11 |
| 6 | 35 | 100 | ≥10 | 8.5/3.5 | 15 |
| 7 | 40 | 120 | ≥10 | 11/11/7.5 | 15 |
| 8 | 50 | 150 | ≥9 | 11/11/7.5 | 18.5 |
| 9 | 60 | 180 | ≥9 | 12/3.5 | 18.5 |
| 10 | 70 | 200 | ≥9 | 16/16/11 | 22 |
| 80 | 240 | ≥9 | 18/5 | 30 | |
| 11 | 100 | 300 | ≥9 | 22/22/16 | 30 |
| Note : Other Non-standard Design , Pls Contact Us Freely . | |||||
Cargo Ship , tug boats etc .
Offshore.
Platform.
Dockside.
Various types of vessels.
We respond immediately to any questions , inquiries and needs , feel free to contact us at any time .
