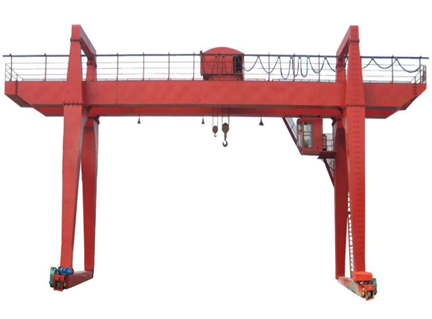

Double Girder Gantry Crane

Get Price Send Email

Main Features

Parameters

Application

Related Cases

Main Features

1.The double beam gantry crane is the first to design honeycomb beam, which has the characteristics of light dead weight, large load and strong wind resistance.
2.Unique steel pin connection, not only firm and reliable, and short assembly time.
3.Flexible strut legs, site steering can be disassembled into a single piece, easy to transport.
4.Low cost can meet different customers’ needs
5.Double beam bridge crane has strong bearing capacity, large span and good overall stability.

Parameter

Product Model	Double girder gantry crane
Lifting Capacity	5-600 ton
Span	10.5m-31.5m
Lifting height	6m-26m
Working grade	A5,A6,A7
Control method	remote control, Cabin control

Note: 1.the cranes can be designed as the customers’ requirements .

2.It can be matched with the electromagnet , multi-type grab bucket etc .

3.If used in explosive gas mixture , we can design the explosion-proof overhead crane .

Applications

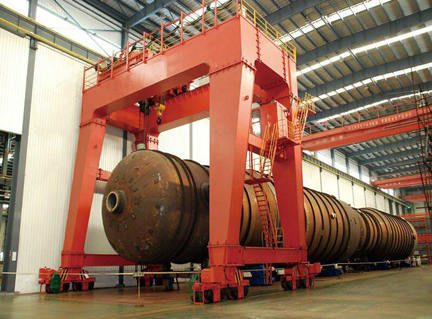

The product is widely used in iron and steel metallurgy , hydropower , aerospace , ships , automobiles , coal ,steel, port, petrochemical industry . Other special working environments can be customized .

Related Cases

Chile Knuckle Boom Crane Of Truck

The knuckle boom crane is installed on the truck , we designed the crane according to the parameters of truck , so that it can be installed the suitable crane , the crane can be equipped with joystick remote control .

Related Products

Single Girder Gantry Crane

Single girder gantry crane is used together with electric hoist , It is a track travelling small and medium-sized crane . Its proper lifting weight is 3 ton to 20 ton . Proper span is 12m-30m , Its proper working temperature is -20°C+40°C .

Straddle Carrier

Straddle carrier are very popular in today's market, it is a more cost-effective crane products, only need one beam, hooks and tires, no other lifting equipments needed, It can realize to transport the goods to the specified location.

European Electric Hoist

European wire rope electric hoist adopts the European FEM design standards with advanced concepts , beautiful shape . The drive unit adopts domestic advanced point line meshing gear structure making the machine has compact reasonable structure.

European Single Girder Overhead Crane

European single girder gantry crane, with light weight, compact structure, low energy consumption .European crane adopts unique design concept, with small size, light weight, small wheel pressure characteristics.
